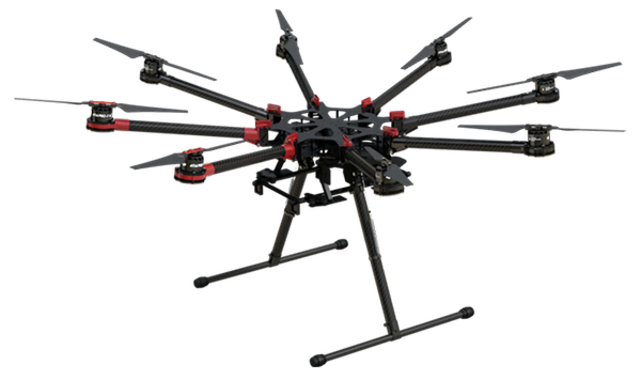

Octocopter S1000

System Overview

  • Safe And Stable
  • Portable Easy To Use
  • Sparkproof Plug
  • Professional Octocopter
  • Low Gimbal Mounting Position
  • Retractable Landing Gear
  • ZENMUSE Z15-5D Gimbal
  • New Damping Design
  • Innovative Frame Arm Design

img1-965b2c7d90db3fdade561a7dd99fc2a0
SAFE AND STABLE

The S1000’s V type mixer design provides large amounts of propulsion while improving power efficiency. Combined with DJI flight controllers like the A2, it is guaranteed to remain stable even with the loss of a rotor. Integrated into the center frame is a power distribution system using our patented coaxial cable connector.

It is more efficient, reliable and easy to install and it eliminates the need for soldering. All frame arms and the retractable landing gear are made from carbon fiber, ensuring a very light weight and high structural stability.

img2-5396d8eef8b0469eb3d2b9a7e7654ef8
PORTABLE
EASY TO USE

All eight arms can be completely folded down and the folding propellers can be tucked away, minimizing the S1000’s size for transportation. To fly, simply lift the frame arms up, lock them into place and power up the system. This greatly saves on pre-flight prep time.

Frame

Diagonal Wheelbase
1045mm
Frame Arm Length
386mm
Frame Arm Weight
(Including Motor, ESC, Propeller )
325g
Center Frame Diameter
337.5mm
Center Frame Weight (With Landing Gear Mounting Base, Servos)
1330g
Landing Gear Size
460mm (Length) ×511mm (Width) ×305mm (Height), (Top width: 155 mm)

Motor

Stator Size
41×14mm
KV
400rpm/V
Max Power
500W
Weight(With Cooling Fan)
158g

ESC

Working Current
40A
Working Voltage
6S LiPo
Signal Frequency
30Hz ~ 450Hz
Drive PWM Frequency
8KHz
Weight(With Radiators)
35g

Foldable Propeller (1552/1552R)

Material
High strength performance engineered plastics
Size
15×5.2inch
Weight
13g

Flight Parameters

Takeoff Weight
6.0Kg ~ 11.0Kg
Total Weight
4.2Kg
Power Battery
LiPo (6S、10000mAh~20000mAh、15C(Min))
Max Power Consumption
4000W
Hover Power Consumption
1500W (@9.5Kg Takeoff Weight)
Hover Time
15min (@15000mAh & 9.5Kg Takeoff Weight)
Working Environment Temperature
-10 °C ~ +40 °C

Gain Value Settings

For A2 Flight Controller
Basic: Roll 120%, Pitch 120%, Yaw 120%
Attitude: Roll 170%, Pitch 170%, Vertical 120%
For WooKong-M Flight Controller
Basic: Roll 180%, Pitch 180%, Yaw 120%
Attitude: Roll 180%, Pitch 180%, Vertical 120%
